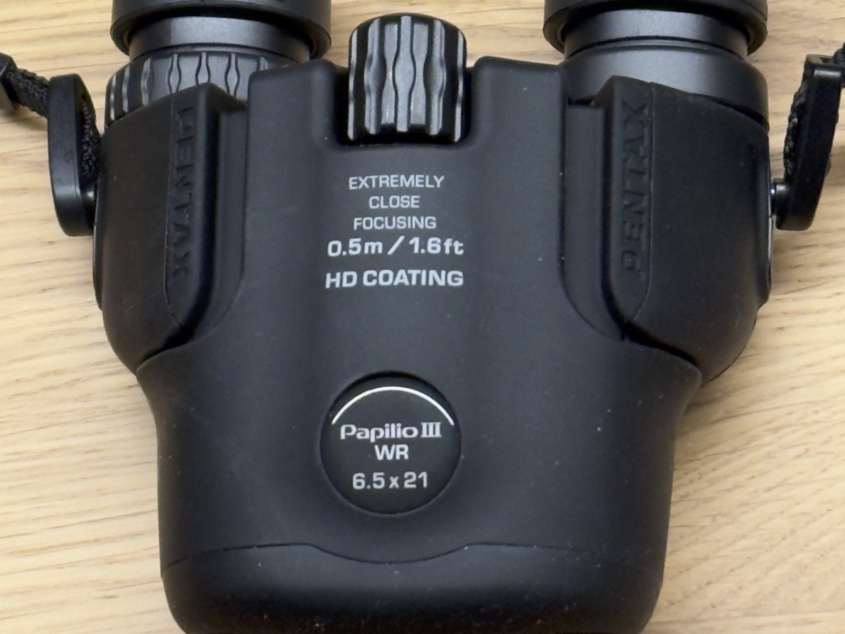

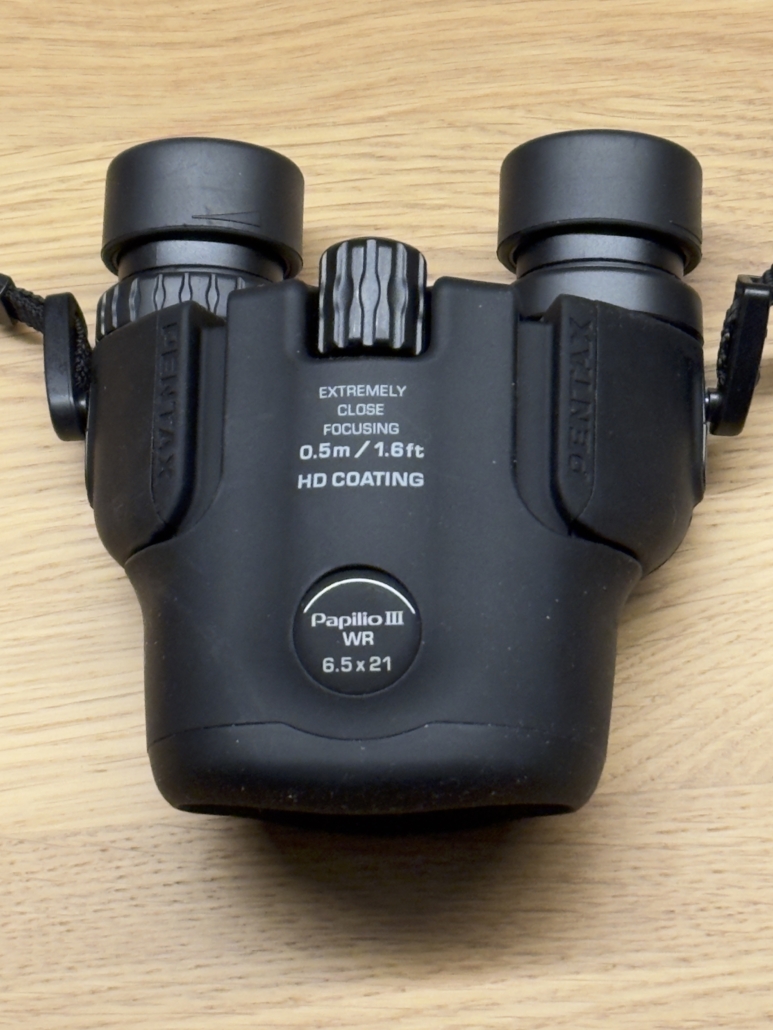

Pentax Papilio III 6.5×21 WR

Specifications:

Objective diameter:  21 mm
Magnification:  6.5 x
Exit pupil: 3.23 mm
Eye relief (acc. to spec): 15 mm
Usable eye relief (measured from rim of eyecup): 11 mm
IPD: 56  –  74 mm
RFOV:  7.5  degrees = 131 m
AFOV (measured, rounded): 48 degrees
Minimum focus distance (measured): 0.48 m
Focus type: CF (direction of rotation from close to infinity: > clockwise)
Degrees of rotation of focus wheel from 3m to infinity (measured): 225 degrees
Range of diopter adjustment (acc. to spec.): +/- 4 dpt*
Excess travel of focus wheel beyond infinity position (estimate): 7 dpt*
Prism system:  Porro I Reverse
Waterproof: spashproof ?
Weight (measured, with eyepiece cover and strap): 323 g
Made in: China
*range of diopter adjustment not affected by position of focus wheel

Remarks:

In 2025, Pentax brought out a slightly modified version of its successful Papilio models 6.5×21 and 8.5×21, named Papilio III WR. The “WR” stands for “weather resistant”, so the new version is now fully splashproof; beside that, new AR coatings, new armours and a minimally modified diopter adjustment mechanism are the changes from the previous Papilio II version, all other optical specifications stay the same (see therefore the separate post for the Papilio II, https://binocular.ch/pentax-papilio-ii-6-5×21/)

Ratings:
