Eschenbach Trophy D 8×32 ED
Specifications:
Objective diameter: 32 mm
Magnification: 8 x
Exit pupil: 4 mm
Usable eye relief (measured from rim of eyecup): 12 mm
IPD: 54 – 74 mm
RFOV: 7.6 degrees = 133 m
AFOV (measured, rounded): 61.5 degrees
Minimum focus distance (measured): 2.5 m
Focus type: CF (direction of rotation from close to infinity: < anticlockwise)
Degrees of rotation of focus wheel from 3 m to infinity (measured): 300 degrees
Range of diopter adjustment (estimate): +/- 4 dpt*
Excess travel of focus wheel beyond infinity position (estimate): 8 dpt*
Prism system: Schmidt-Pechan
Waterproof: yes
Weight (measured, with eyepiece cover and strap): 598 g
Made in: Germany (?)
*range of diopter adjustment not affected by position of focus wheel
Remarks:
This is the smaller of the two Trophy D model lines (see separate post about „Eschenbach Trophy D 8×42“, https://binocular.ch/eschenbach-trophy-d-8×42-ed/). Despite the fact that it is a very decent middle class binocular sold at a resonable price, it never became a big success.

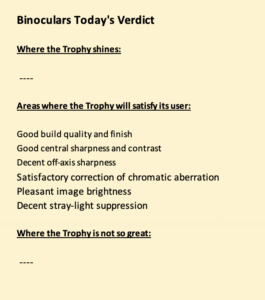

Ratings:
Review:
A brief 2014 review (in German) can be found here:
https://www.juelich-bonn.com/jForum/read.php?9,424944,424944#msg-424944
