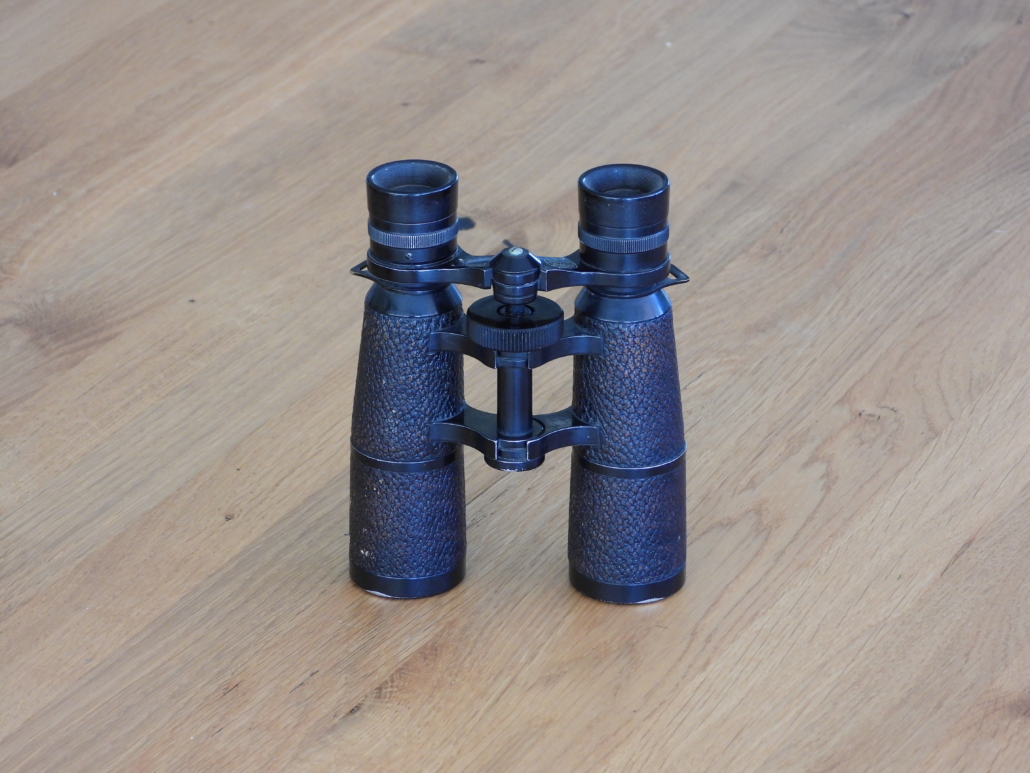

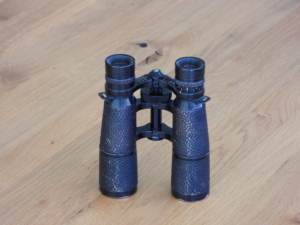

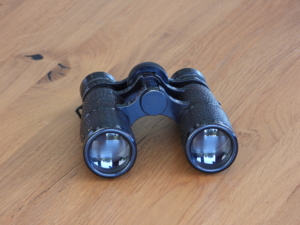

Hensoldt Universal-Dialyt 6×30

Specifications:

Objective diameter (acc. to spec.): 30 mm
Magnification (acc. to spec.): 6 x
Exit pupil (acc. to spec.) : 5 mm
Eye relief (acc. to spec.): 7 mm
IPD (measured): 55-76 mm
RFOV (acc. to spec.):  8.6 degrees = 150 m
Minimum focus distance (measured): 2.8 m
Focus type: CF (direction of rotation from close to infinity: “<” counter-clockwise)
Prism system: Abbe-König
Waterproof: splashproof
Weight ( acc. to spec.): 480 g
Made in: Germany

Remarks:
This collection doesn’t generally include vintage models, except if they are representative for a period or an optical breakthrough or otherwise important for the development of the binocular market. The “Dialyt” series from Hensoldt was such a breakthrough. Hensoldt Wetzlar was a pioneer in designing and producing roof-prism binoculars (the company was later taken over by Zeiss, and Zeiss later used the name “Dialyt” for a number of its own binoculars.). The sample presented here, produced in 1936, features Abbe-König prisms; the lenses are uncoated (coating started after 1939). The 6×30 version of the Dialyt series was produced from about 1925 until the late 1950s. Its wide field of view for the time – 8.6 degrees or 150/1000m – and good sharpness make this an attractive lightweight instrument.
see also the other Hensoldt Dialyt in this collection, https://binocular.ch/hensoldt-8×56-nacht-dialyt/, or the Zeiss Dialyt instruments, „Zeiss Dialyt 8×56 B/GA T“, https://binocular.ch/zeiss-dialyt-8×56-b-ga-t/ and „Zeiss Dialyt 7×42 T*P“, https://binocular.ch/zeiss-dialyt-7×42-tp/
